Varmlufts loddestasjon med digitalt display BST-702D
Quantity

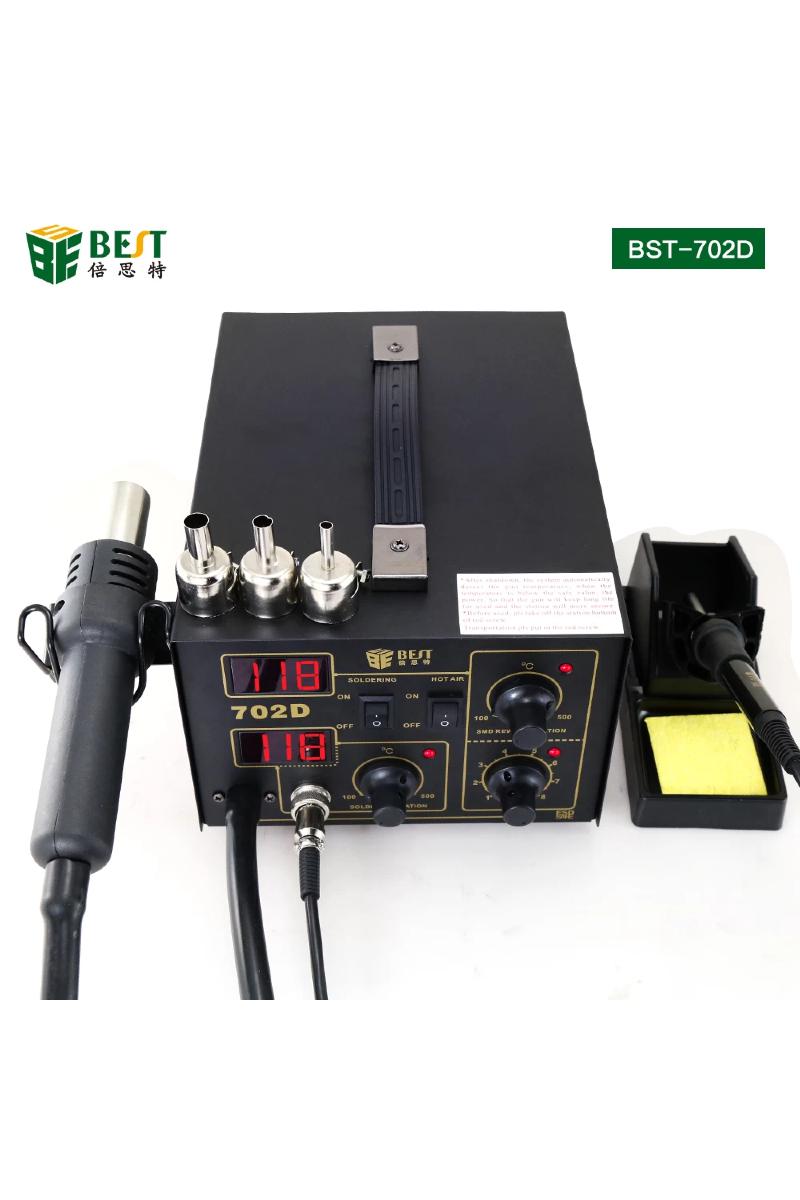

Hot air soldering rework station with digital display BST-702D
- Model Number: 702D
- Temp.Control:: 100℃-500℃
- Output Power for hot gun: 650W±10%
- Heating wire for hot gun: High-power heating wire
- Heater of soldering iron: Four core ceramic heater
- Packing size:56.5cm*34cm*60.5CM
- The number of packing: 6 units
- A carton weight: 26.6KG
1. 702 hot air soldering station adopt sensor close loop,microcomputer control the temperature,LED display.
2. high-power,rapid heating,accurate and stable temperature.
3. The airflow is adjustable,the wind is heavy but soft.and the hot air gun is made of heat-resisting material.
4. When the power is off, the cool system will work automatically.
5. The solder iron heat rapidly,the temperature can be ajustable,the hand is very light and handy
Application:
1. Three different size nozzle, which can be used for different size of BGA,SMD,PCB.
2. This item has widely usage,can be used for electronic factory,repairing ect.

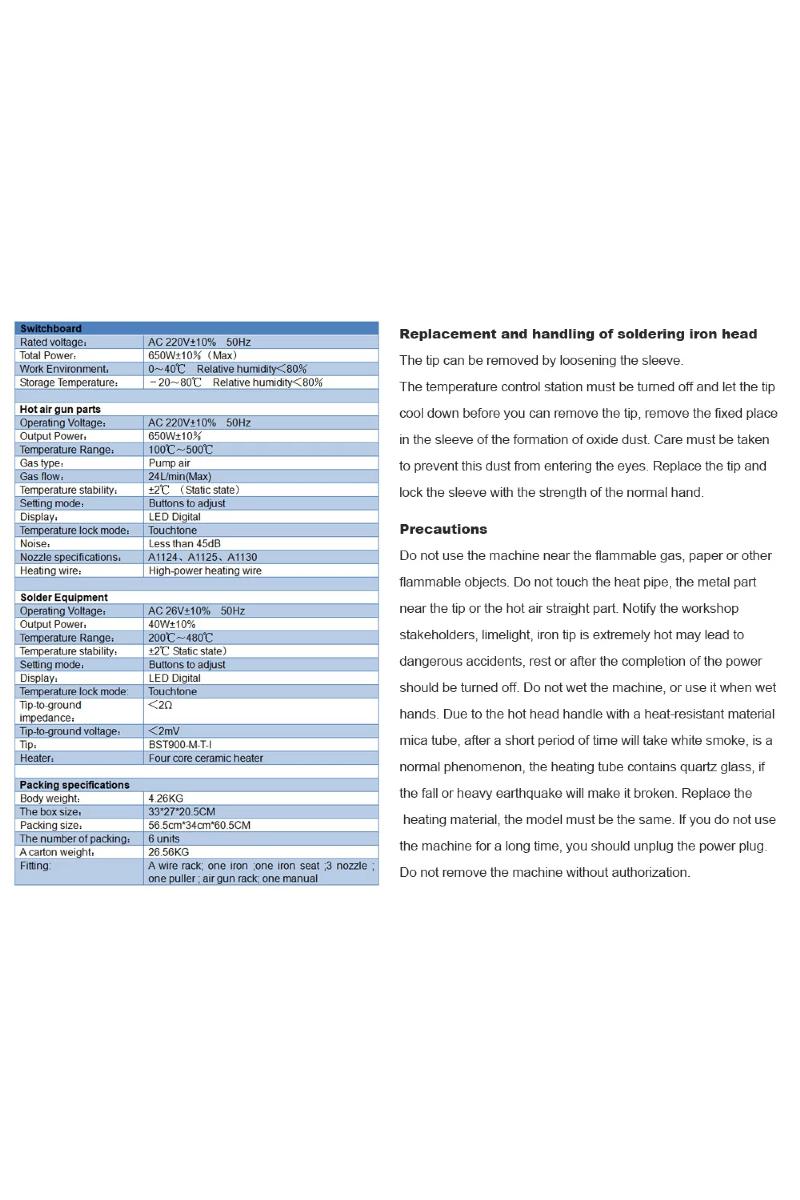

| Switchboard | |
| Rated voltage： | AC 220V±10% 50Hz |
| Total Power： | 650W±10％（Max） |
| Work Environment： | 0～40℃ Relative humidity＜80％ |
| Storage Temperature： | －20～80℃ Relative humidity＜80％ |
| Hot air gun parts | |
| Operating Voltage： | AC 220V±10% 50Hz |
| Output Power： | 650W±10％ |
| Temperature Range： | 100℃～500℃ |
| Gas type： | Pump air |
| Gas flow： | 24L/min(Max) |
| Temperature stability： | ±2℃ （Static state） |
| Setting mode： | Buttons to adjust |
| Display： | LED Digital |
| Temperature lock mode： | Touchtone |
| Noise： | Less than 45dB |
| Nozzle specifications： | A1124、A1125、A1130 |
| Heating wire： | High-power heating wire |
| Solder Equipment | |
| Operating Voltage： | AC 26V±10% 50Hz |
| Output Power： | 40W±10% |
| Temperature Range： | 200℃～480℃ |
| Temperature stability： | ±2℃ Static state） |
| Setting mode： | Buttons to adjust |
| Display： | LED Digital |
| Temperature lock mode: | Touchtone |
| Tip-to-ground impedance： | ＜2Ω |
| Tip-to-ground voltage： | ＜2mV |
| Tip： | BST900-M-T-I |
| Heater： | Four core ceramic heater |
| Packing specifications | |
| Body weight： | 4.26KG |
| The box size： | 33*27*20.5CM |
| Packing size： | 56.5cm*34cm*60.5CM |
| The number of packing： | 6 units |
| A carton weight： | 26.56KG |

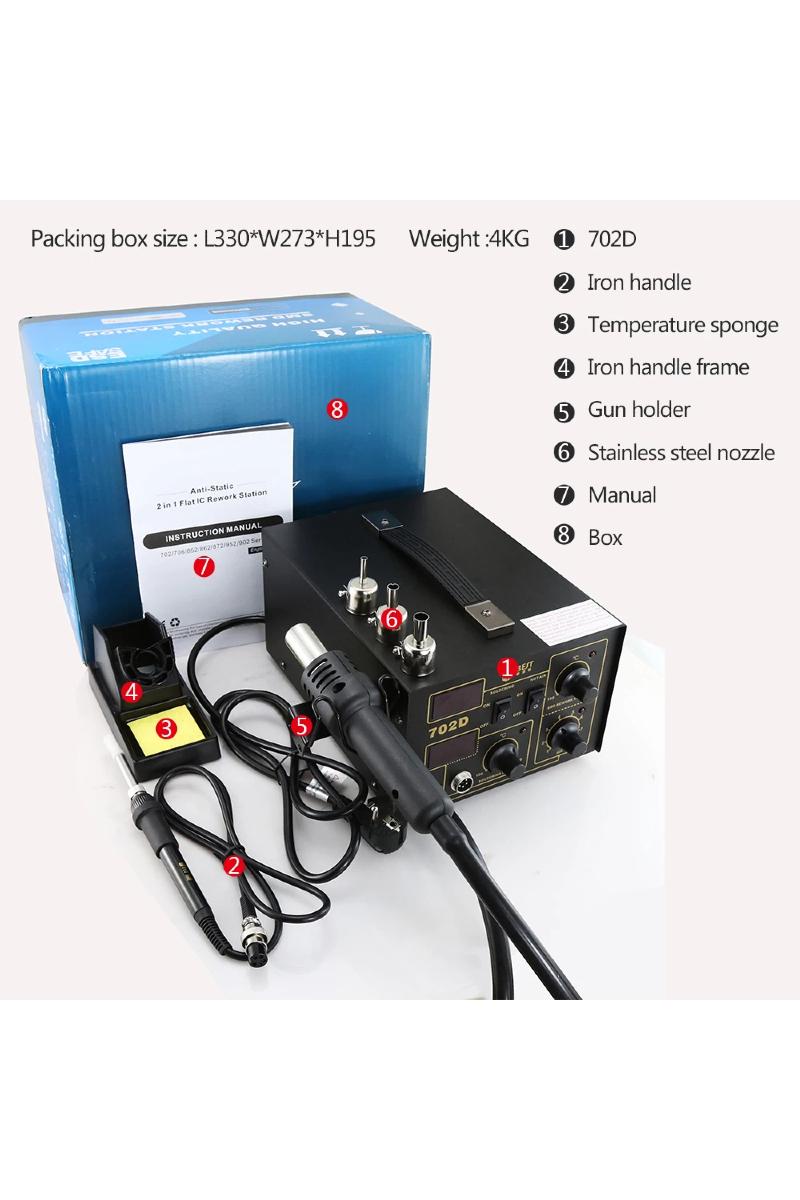

| Fitting: | A wire rack; one iron ;one iron seat ;3 nozzle ; one puller ; air gun rack; one manual |
